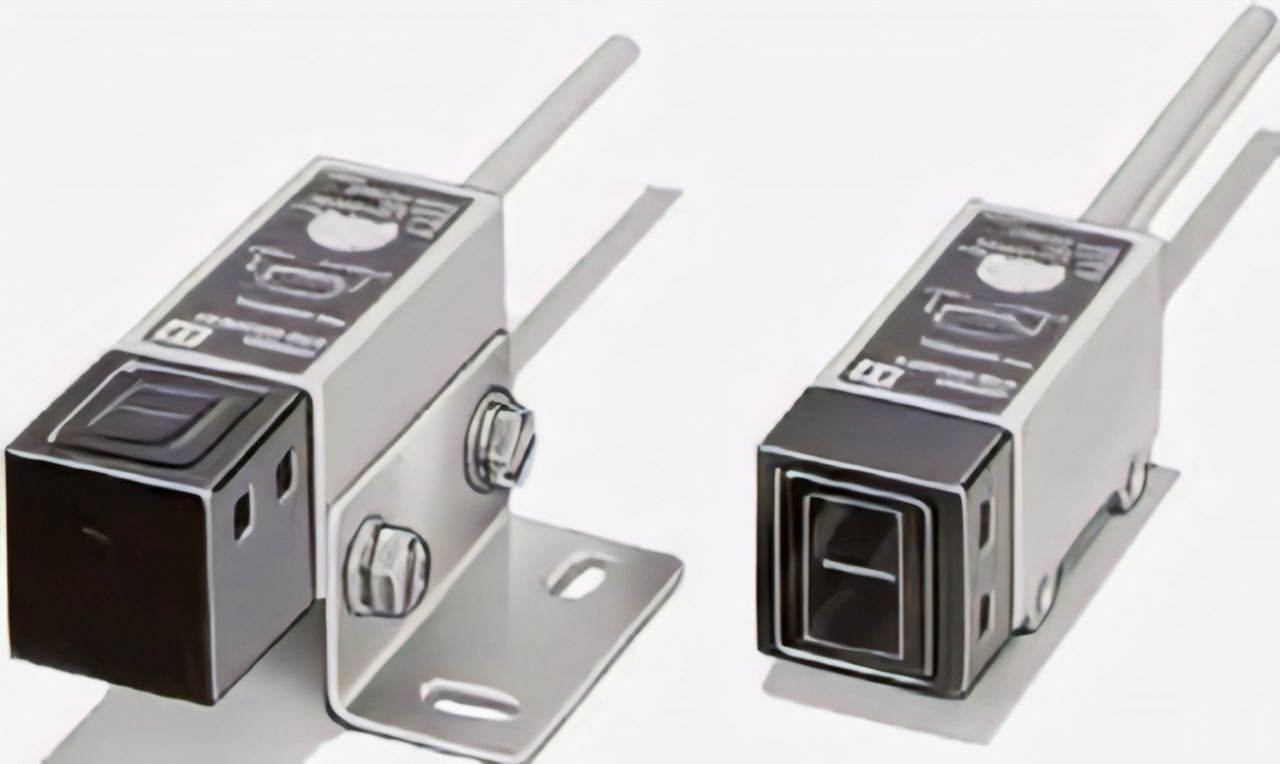

OMRON Photoelectric Sensors with Built-In Amplifier [E3S]

• Type: Photoelectric sensor
• Detected Objects: Opaque objects
• Detection Method: Retro-reflective (limited reflective type)
• Light Source: Infrared LED (standard beam)
• Head Shape: Square (50 × 17 × 55 mm)
• Material: Zinc die-casting
• Amplifier: Built-in type
• Power Supply: 12–24 VDC
• Operation Mode: Light-ON / Dark-ON (selectable)
• Response Time: 1 ms
• Cable Length: 2 m
• Protection: IP67
• Mounting: Iron bracket
