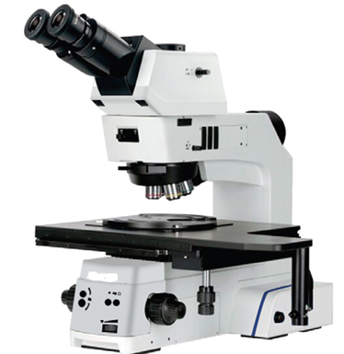

MX63
METALLOGRAPHIC MICROSCOPE
- Optical System: Infinity color correct optical system
- Eyepiece tubes: Infinity gemel trinocular head, 30' inclined, inverted image, interpupillary distance: 50-76mm, three splitting ratio: 0 : 100; 20 : 80; 100 : 0 (Optional: Infinity gemel trinocular head, 30' inclined, Erected image, interpupillary distance: 50-76mm, splitting ratio: 100:0 or 0:100)
- Eyepiece: High eye point wide field plan eyepiece PL10X/25mm, adjustable visibility with single scale cross divider
- Objective: Brightfield Semi-apochromatic metallographic objective (5X, 10X, 20X, 50X) (Optional: Semi-apochromatic metallographic objective (5X, 10X, 20X, 50X, 100X), Infinity super-long distance BD(Brightfield/Darkfield) Semi-apochromatic metallographic objective (20X), Infinity long working distance BD(Brightfield/Darkfield) Semi-apochromatic metallographic objective (50X, 100X), BD(Brightfield/Darkfield) Quintuple nosepiece / Sextuple Nosepiece, with DIC slot)
- Nosepiece: Brightfield Quintuple nosepiece, with DIC slot (Optional: Quintuple nosepiece / Sextuple Nosepiece, with DIC slot)
- Focusing Mechanism: Reflected frame, with front low position coarse and fine coaxial focusing mechanism, coarse range: 33mm, fine precision: 0.001mm, with adjust the tightness device and random upper limit device. Inward 100-240V wide voltage system, with light intensity setting button and reset button (Optional: Reflected / transmitted frame, with Front low position coarse and fine coaxial focusing mechanism, coarse range: 35mm, fine precision: 0.001mm, with adjust the tightness device and random upper limit device)
- Stage: 8-inch three-layer mechanical mobile platform, low hand position X, Y direction coaxial adjustment; Platform area: 525mmX330mm, moving range: 210mmX210mm; With clutch handle, it can be used for fast movement in the full range of travel; Glass stage, (for reflection) (Optional: 12-inch three-layer mechanical mobile platform, low hand position X, Y direction coaxial adjustment; Platform area 718mmX420mm, moving range: 356mmX305mm; With clutch handle, it can be used for fast movement in the full range of travel; Glass stage / Electric platform: area 495mmX641mm, moving range: 306mmX306mm; Software control X, Y movement, repeated positioning accuracy, (3+L/50)μm with flat platform)
- Illumination: 12V100W Halogen lamp, Brightfield reflection illuminator, with variable aperture stop, field diaphragm, adjustable center; With filter slot and polarizing device slot (Optional: BD(Brightfield / Darkfield) reflection illuminator, with variable electric aperture stop, field diaphragm, center adjustable; with Brightfield and Darkfield switching device; With filter slot)
- Camera adapter: 0.5X C-mount adapter, focus adjustable (Optional: 0.35X/0.65X/1X)
- Others: polarizer, 360° rotating analyzer, Interference filters for reflection (Optional: DIC differential interference module, 8 inch crystal disc, 12 inch crystal disc)
