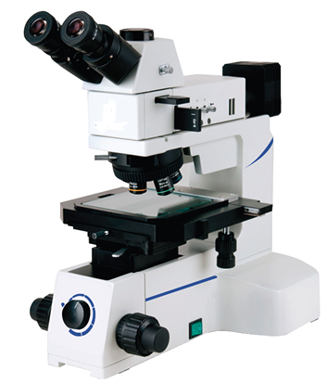

MX53
METALLOGRAPHIC MICROSCOPE
- Optical System: Infinity color correct optical system
- Eyepiece tubes: 30° inclined trinocular head, inverted image, Infinity gemel trinocular head (Optional: 5-35° adjustable, erected image, Infinity gemel trinocular head, interpupillary distance: 54-76mm, diopter adjustment: ±5 diopter, splitting ratio: 100:0 or 0:100 (Support 22/23/16mm field of view))
- Eyepiece: High eye point wide field plan eyepiece PL10X/22mm
- Objective: Infinity long working distance Brightfield achromatic metallurgical objective (5X, 10X, 20X, 50X) (Optional: LCD with correcting semi-apochromatic objective 50X, Long Working Distance Brightfield/Darkfield achromatic metallurgical objective (5X, 10X, 20X, 50X, 100X), Infinity long working distance Brightfield/Darkfield Semi-apochromatic metallographic objective (5X, 10X, 20X, 50X, 100X), Super-Long Working Distance Brightfield/Darkfield Semi-apochromatic metallographic objective (20X, 50X))
- Nosepiece: Brightfield Quintuple nosepiece, with DIC slot (Optional: Brightfield/Darkfield Quintuple nosepiece, with DIC slot)
- Focusing Mechanism: Reflected frame with Front low position coarse and fine coaxial focusing mechanism, coarse range: 30mm, fine precision: 0.001mm, with upper limit and adjust the tightness device (Optional: Reflected/transmitted frame with Front low position coarse and fine coaxial focusing mechanism, coarse range: 30mm, fine precision: 0.001mm, with upper limit and adjust the tightness device. Built-in 5W warm LED transmitted light lighting system, up and down can be independently controlled)
- Stage: 4 inches two-layer mechanical stage with low position coaxial adjustment; platform size: 230mm x 215mm, moving range: 105mm x 105mm; Metal stage (Left/right hand, reflected use) (Optional: 6 inches three-layer mechanical stage with low position coaxial adjustment; platform size: 445mm x 240mm, Reflective lighting moving range: 158mm x 158mm, transmission lighting moving range: 100mm x 100mm. With clutch handle for fast movement over full travel range, glass stage (for transparent reflection))
- Illumination: Bright field illuminator, cora illumination system, with iris aperture diaphragm and field diaphragm, center adjustable; wide voltage 100-240v with inclined illumination device, single high-power 5WLED, warm color (color temperature 2850k-3250k) (Optional: BD(Brightfield and Darkfield) reflection illuminator, with iris aperture diaphragm and field diaphragm, center adjustable; with Bright/dark field switch; With filter slot and polarizing device slot)
- Camera adapter: 0.5X C-mount adapter, focus adjustable; digital camera relay lens (Optional: 0.35X/0.65X/1X)
- Others: polarizer, analyzer, 360 ° rotating analyzer, Filter set (Optional: DIC differential interference module)
