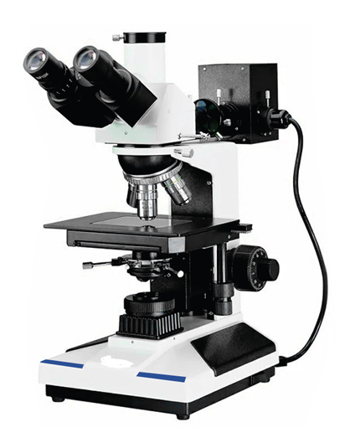

CX21

METALLOGRAPHIC MICROSCOPE

• Eyepiece tubes: trinocular, tilt 30°, 360° rotation (inward polarizer, can be switched)
• Objective: Long working distance plan achromatic objective 5X/0.12, 10X/0.25, 20X/0.45, 40X /0.60(spring)
• Nosepiece: Quadruple nosepiece, inward ball positioning
• Eyepiece: 10X wide-angle eyepiece, focus distance 25 mm, FOV(field of view) Φ18 mm
• Stage: 180 mm X 145 mm, moving range: 75 mm X 50
• Condenser: Condenser N.A. 1.25, with aperture diaphragm, adjustable up and down
• Color Filter: Blue, green, ground glass
• Illumination: 6V 20W halogen lamp lighting, brightness can be adjusted
• Camera (Optional): 650 lines, analog camera; Hd digital camera
• Software (Optional): Camera with measurement software; Metallography measuring software
• Monitor (Optional): 22.5-inch monitor
